CARGO PROTECTION FOR EXTREME WEATHER CONDITIONS

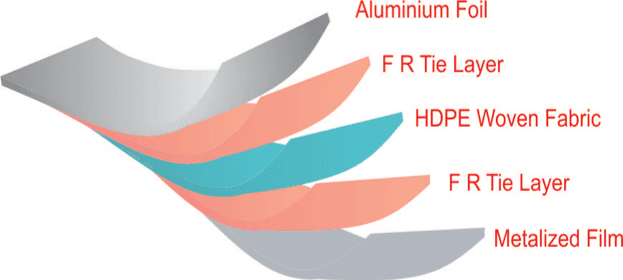

BHA's Thermal Container Liner is a woven reflective liner constructed from laminate consisting of a highly reflective

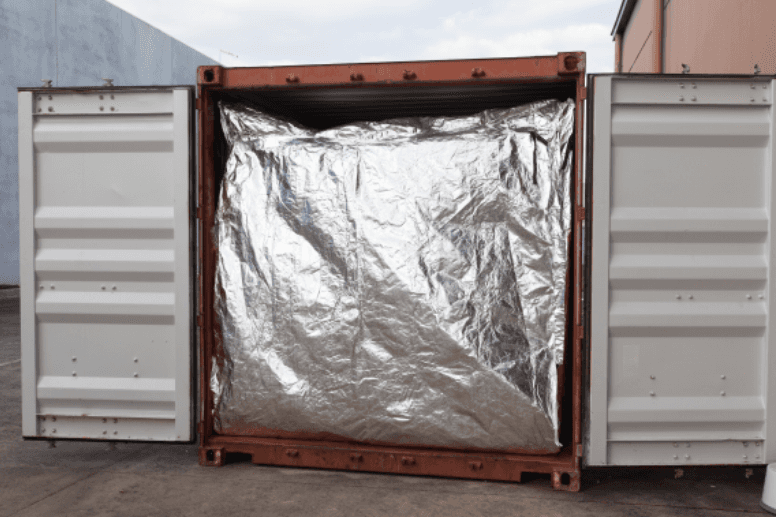

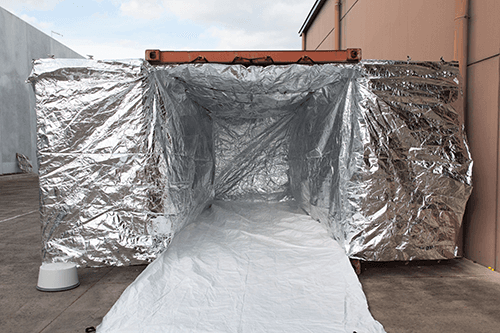

aluminum layer, polyethylene sheeting, fire retardant layer, woven polyethylene and a metalized layer. The liner can be fit to a standard 20ft or 40ft general purpose ISO shipping container and can be loaded via forklift by hand or slip sheet. Once loaded and fully sealed, it protects all six sides of the container and provides a humidity controlled environment for the cargo within.
With outstanding affordability, ease of installation, versatility and strength, it can be used across many industries including wine, food and beverages, automative, plastics, chemicals,computing and electronics.
Without correct heat protection, sensitive cargo can be exposed to three types of dangerous heat penetration:
1. Conduction: Occurs when the cargo makes direct contact with the container walls.
2. Radiation: Radiant heat penetrates the container walls via infrared radiation.
3. Convection: This occurs when hot air circulates throughout the inside of the container.

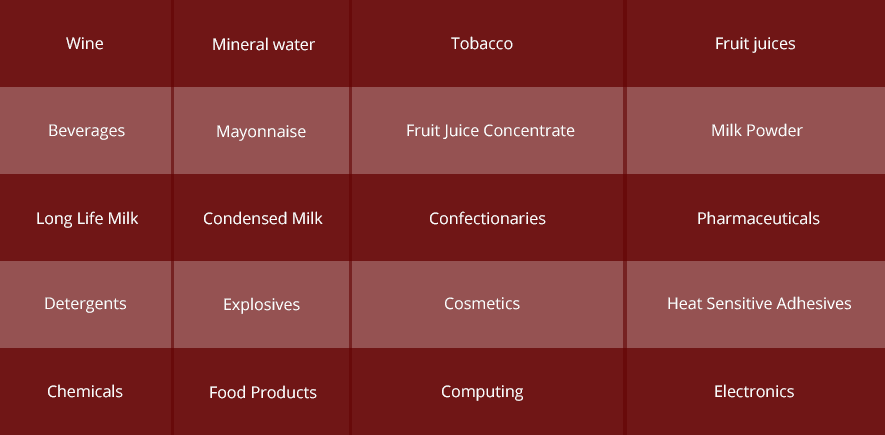

TYPICAL INDUSTRIES FOR THE THERMAL CONTAINER LINERS
BENEFITS:
- Protects Cargo by reflecting up to 95% of radiant energy.
- Eliminates conductive heat transfer.
- Oxygen barrier, therefore no contamination can pass through to sensitive cargo.
- Moisture barrier. Due to the fact that all the temperature spikes are eliminated, dew point is never reached, thus no moisture inside the Thermal Liners.
- The container is transformed into a clean room environment, preventing dust and container -drip from ruining the cargo.
- Fire retardant inner layer, so if a fire starts within the container, it will be starved of oxygen.
- Woven material is strong and helps prevent tearing or ripping.
